Connectors
Low insertion loss Good repeatability Good interchangeability Good temperature stability
Applied to optical fiber communication system, optical fiber data transmission, LAN, optical fiber sensor and optical fiber CATV technical parameters

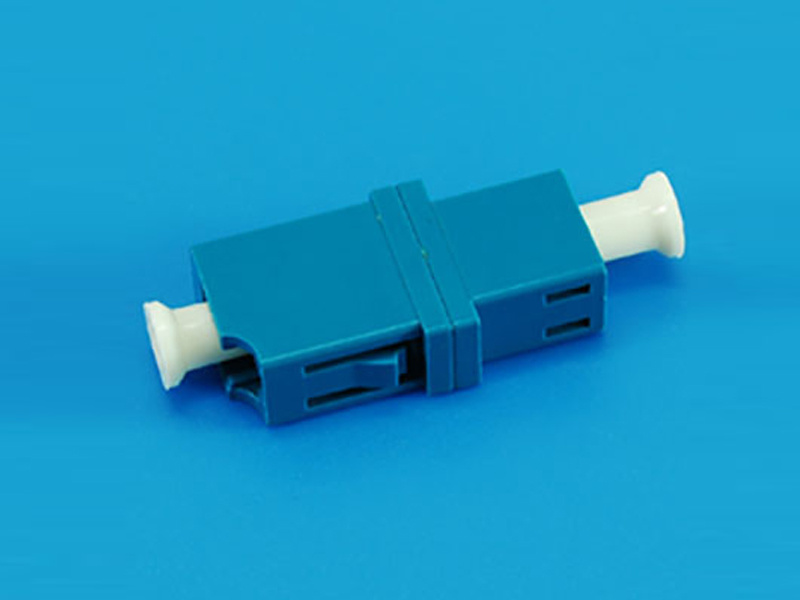

Optical fiber active connector series (FC, SC, ST, LC, MU, MT-RJ, E2000, DIN, MPO; beam, ribbon, armored, waterproof tail cable and other models), adapters, attenuator series and Optical fiber connection and wiring equipment.
Performance:
1. Working wavelength: 1200nm~1600nm
2. Insertion loss (insert 1000 times): 0.2 (Max.)
3. Operating temperature: -30°C~+75°C
4. Storage temperature: -40°C~+85°C
5. Relative humidity: 95%
Performance:
1. Working wavelength: 1200nm~1600nm
2. Insertion loss (insert 1000 times): 0.2(Max.)
3. Operating temperature: -30°C~+75°C
4. Storage temperature: -40°C~+85°C
5. Relative humidity: 95%
Performance:
1. Working wavelength: 1200nm~1600nm
2. Insertion loss (insert 1000 times): 0.2(Max.)
3. Operating temperature: -30°C~+75°C
4. Storage temperature: -40°C~+85°C
5. Relative humidity: 95%
Features: Versatility, interchangeability, reliable and stable connection; high repeatability; low insertion loss, high echo reflection loss; imported ceramic ferrule, good wear resistance and high precision. Uses: telecommunication network, local area network, data transmission network, optical fiber CATV; test equipment, communication backbone.
Performance:
1. Working wavelength: 1200nm~1600nm
2. Insertion loss (insert 1000 times): 0.2(Max.)
3. Operating temperature: -30°C~+75°C
4. Storage temperature: -40°C~+85°C
5. Relative humidity: 95%
Performance:
1. Working wavelength: 1200nm~1600nm
2. Insertion loss (insert 1000 times): 0.2(Max.)
3. Operating temperature: -30°C~+75°C
4. Storage temperature: -40°C~+85°C
5. Relative humidity: 95%
